Clivus Multram community toilets

Compost Toilets for families and communities

Clivus Multram makes full-time family toilets, with no bins to replace, ever.

Perfect for full-time family use, eco-resorts, schools, and outdoor adventure clubs, this composting toilet is clean and very user-friendly.

From the optional self-closing white pedestal to the huge-capacity composting chamber, this system is thought out for those who want a normal-looking bathroom, with minimal cleaning out and servicing.   There are no chambers to change-over; just remove some composted garden mulch with a spade, a couple of times a year.   Everything gets digested – paper, urine, and solids, with the result being an excellent fertilizer for your fruit trees.

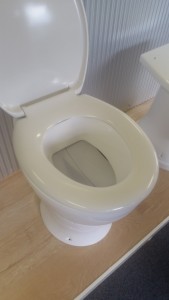

closed CM8 pedestal

A Clivus Multram pedestal with chamber screen.

All the CLivus Mutram composting chambers have huge capacity, without great height.  In some installations, the front part of the chamber may be buried up to 400mm, in the ground to reduce the height of the bathroom floor above the ground.

Compost toilet cm8 tank

This is the Clivus Multram compost toilet tank

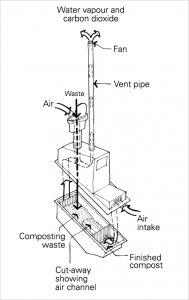

This is how it works:

clivus- how it works



Clivus Multram  CM10 – CM40  Larger split systems for groups.

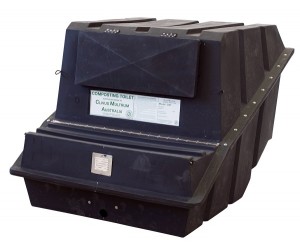

cm10 composting toilet

A Clivus Multram CM10 composting toilet tank

CM10 CAPACITY: 6-7 people full time Daily: 25 visits (average) Annual: 10,000 visits
DIMENSIONS:Height: 1100mm Length: 1550mm Width: 1550mm
FLOORSPACE REQUIRED:Minimum clearance under floor: 1000mm Maximum buried in ground at front: 200mm Maximum fixture: 2 pedestals
MATERIALS:UV resistant rotomoulded polyethylene tank. Stainless steel front baffle & air ducts and a polyethylene rear air baffle.

The CM10 is ideal for family homes with more than one toilet and small public facilities, especially where two pedestals are required.

The CM10 is approved in QLD, NSW, ACT, WA and TAS. (The products are approved only if installed as per the installation manual)

Tank Package includes:

  • Fully assembled composting tank
  • Heavy duty 12 volt fan and 240V transformer
  • Vent pipe flashing, fan housing and vent rain cover. (150mm)
  • Maintenance tool
  • Starter bacteria
  • Sealant and screws
  • Installation Manual
  • Operation & Maintenance Manual

In addition, the following items can also be purchased to complete your waterless composting toilet:

Ventilation & Drain Kit includes:

  • PVC Ventilation pipes
  • (4.5m) and brackets
  • Roof flashing collar
  • Liquid drain pipe (1 m)
  • Absorption trench arch

Pedestal Package includes:

  • Premium toilet pedestal (in white, charcoal grey or black), and quality white seat
  • Hold down bolts/screws
  • Signs and stickers
  • Toilet chute (0.7m) and collar
  • Wooden toilet seat can be supplied instead of white seat.

Make up your own customised system using all or any of the above packages

Clivus Multram Operation and Maintenance Manual

Clivus Multram Tanks Installation Manual



Model No. of persons H x L x W  mm
CM10 up to 7 full time 1100 x 1550 x 1550
CM14 up to 9 full time 1100 x 2050 x 1500
CM20 up to 13 full time 1630 x 2390 x 1200
CM40 up to 28 full time 1780 x 2430 x 1890
