Good quality batteries made by New Power.
General Features
- Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or adding water.
- Not restricted for transport-complies with IATA/ICAO Special Provision A67.
- A recognized component of CE and UL, computer designed lead, calcium, tin alloy grid for high power density.
- Long service life in float or cyclic applications.
- Maintenance-free operation.
- Low self-discharge
- Design life is 10 years
Applications
- Solar power systems
- Stand-by power storage, in case of brown-out
- UPS and power back-up
- Solar lighting systems
- Portable apparatus, solar lights and instruments
- Illuminating solar signs and lighting
- Fire alarms
- Portable power
- Wheelchairs
- Portable refrigerators & medical equipment
 |
 |
These rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and thus immobilized.
Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak-proof and usable in any position.
Battery Construction
Positive plate - Lead dioxide
Negative plate - Lead
Container - ABS
Cover - ABS
Safety valve - Rubber
Terminal- Copper
Separator- Fibreglass
Electrolyte - Sulphuric acid
Sizes Available:
|
|
VOLTAGE volts |
CAPACITY Ahr@C10 |
LENGTH mm |
WIDTH mm |
HEIGHT mm |
WEIGHT kg |
|
NS12-7D |
12 |
7 |
151 |
65 |
94 |
2.2 |
|
NM12-33D |
12 |
33 |
195 |
130 |
155 |
10.5 |
|

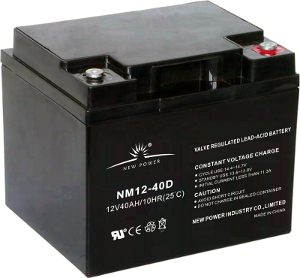

NM12-40D |
12 |
40 |
197 |
165 |
170 |
12.8 |
|
NM12-45D |
12 |
45 |
197 |
165 |
170 |
13.5 |
|
NM12-50D |
12 |
50 |
250 |
160 |
178 |
15.8 |
|
NM12-55D |
12 |
55 |
229 |
138 |
208 |
16.5 |
|
NM12-65D |
12 |
65 |
350 |
167 |
179 |
19.6 |
|
NM12-75D |
12 |
75 |
260 |
169 |
208 |
21.5 |
|
NM12-80D |
12 |
80 |
350 |
167 |
179 |
21.8 |
|

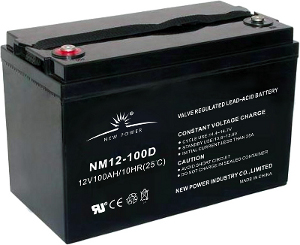

NM12-100D |
12 |
100 |
328 |
171 |
214 |
28.2 |
|
NM12-120D |
12 |
120 |
410 |
176 |
227 |
35.5 |
|

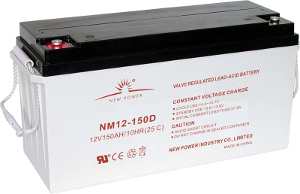

NM12-150D |
12 |
150 |
482 |
170 |
242 |
45.0 |
|
NM12-180D |
12 |
180 |
522 |
238 |
218 |
55.5 |
|
NM12-200D |
12 |
200 |
522 |
238 |
218 |
57.5 |
|
NM6-100D |
6 |
100 |
195 |
170 |
207 |
16.5 |
|
NM6-150D |
6 |
150 |
260 |
180 |
247 |
23.5 |
|
NM6-180D |
6 |
180 |
306 |
168 |
220 |
26.8 |
|
NM6-200D |
6 |
200 |
306 |
168 |
220 |
28.3 |
|
NM6-220D |
6 |
220 |
260 |
180 |
247 |
31.0 |
|
NM6-225D |
6 |
225 |
320 |
176 |
225 |
32.0 |
|
NM6-300D |
6 |
300 |
295 |
178 |
345 |
48.0 |

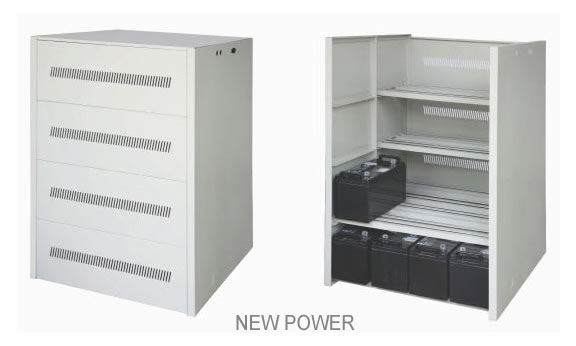

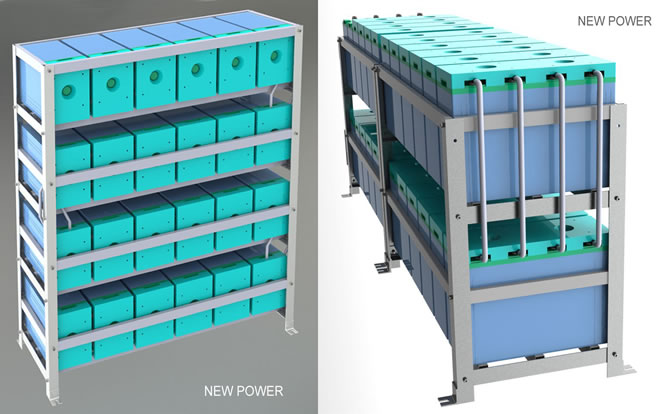

Battery Racks and Battery Cabinets may be ordered with these batteries.
 |
 |
